Technical Highlights
- Double piston pump with active piston backflushing for buffers and reagents.
- In 6 levels programmable buffer gradient.
- Inert gas supply for reagent and buffer.
- Vent valves and Blasenfallen for reagent and buffer pump.
- Programmable temperature gradient for the column. Post column reactor with automatic irrigation system.
- 2 - wavelength Spectrophotometric flow cell (440/570 nm)
Why a Biochrom 30 Plus?
For the determination of amino acids many chromatography procedures are in recent decades have been described and also marketed, that should be faster and with more flexible devices, as it was possible with the classic amino acid analyzers.
All these procedures show method-specific weaknesses and deliver the reliable results as necessary in the routine application. Are amino acids accurately, reliably and independently by the respective sample matrix be determined, so offers not only for the traditional use areas such as food and feed monitoring, pharmaceutical applications and the clinical area - still the procedure with post column reaction, Ninhydrinreagenz and photometric detection at.
This method is proven not only for decades and still necessary in routine laboratories, but written in various official guidelines for the analysis of amino acids. Laboratory Onken GmbH has made the task to provide its decades of experience in the field of classical amino acid analysis to users of the amino acid analysis.
Lithium chemistry for physiological analysis and the Biochrom 30Plus is IVD certified. Thus, it is the only amino acid analyser may be used according to the IVD guidelines PKU-and MSUD analysis for clinical diagnostic purposes.
The Biochrom 30Plus amino acid analyser is a PC-controlled chromatography system specially developed for routine analysis. It is designed for fast, accurate and reliable routine analysis of amino acids in clinical and pharmaceutical applications, for the food and feed industry, proteomics and other applications.
It is based on the proven ninhydrin detection method prescribed in official/legal analysis procedures and represents the technical pinnacle of over 30 years of experience in this field. The consistent use of inert materials such as PEEK and ceramics, as well as ion exchange columns, elution buffers and reagents adapted to the respective applications, guarantee reliable analysis and ensure a long service life.
The complete system consists of an analyser, sample feeder and PC system with control software installed on it.

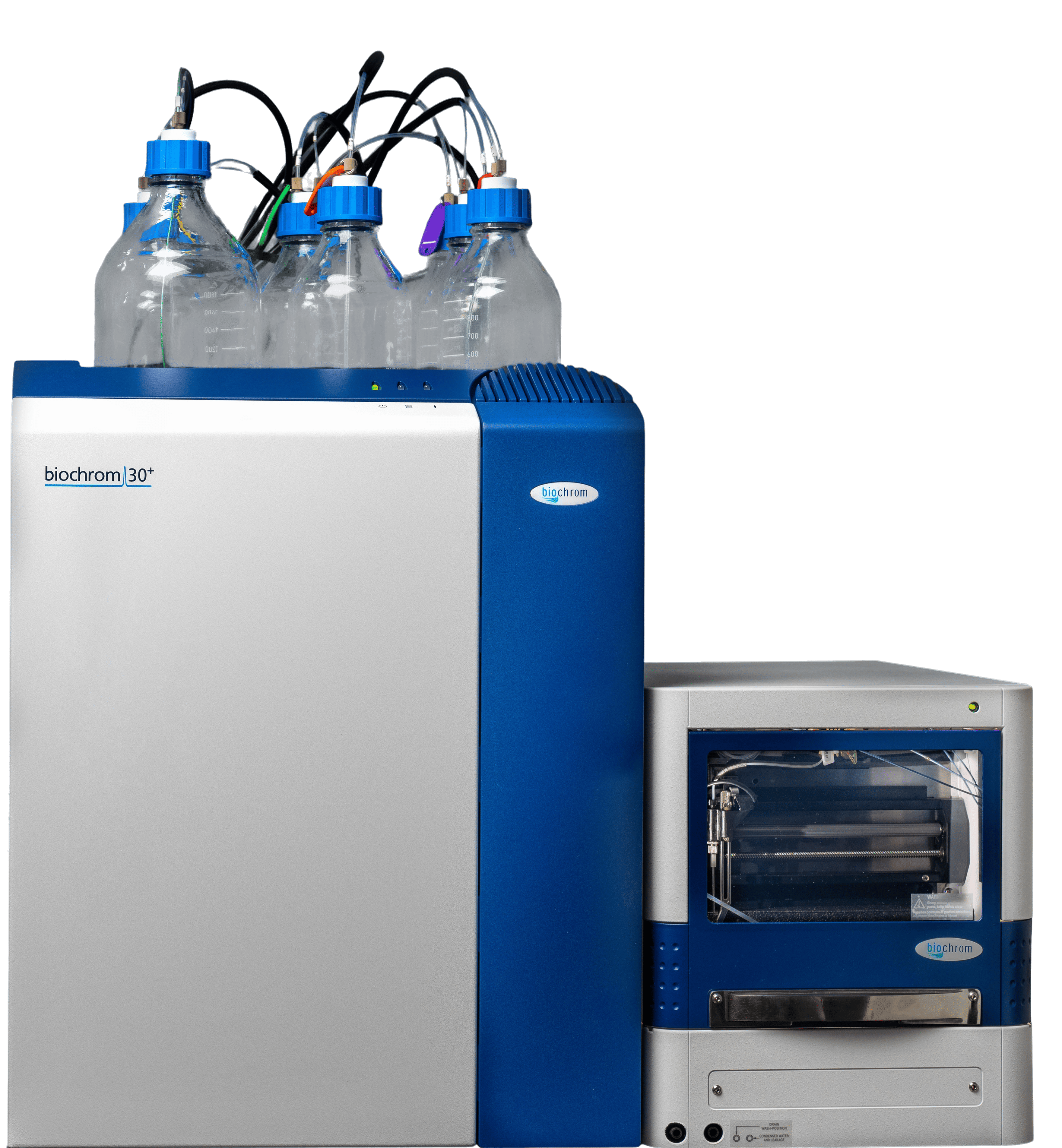

Biochrom 30Plus Amino Acid Analyzer

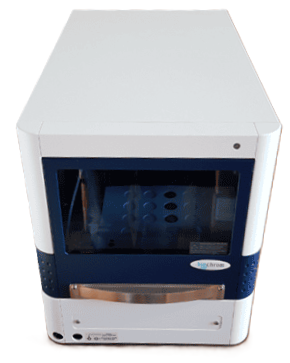

The autosampler
Variable HPLC injection system with temperature control of samples. Model: Alias. Variable injection volume from 1 to 200 µl of standard. Freely programmable for each sample. Partial loop fill with less than 20 µl sample loss. Microlitre-pick-up mode without sample loss by additional transport liquid. Flushed-loop mode for the injection of the total sample volume. Supplied standard sample loop of 200 µl. Other sample loops for example 20, 50 and up to 5000 µl available as an option.
PC system
For optimal processing and evaluation of data, our customers and we use a PC system with the following requirements:
Operating system: Windows 11 Pro (always 64-bit)
An Intel Core i5 processor
a 1TB hard drive
DVD burner for data backup (if you do not back up your data via the network)
Minimum 4GB RAM
24-inch LCD widescreen monitor
keyboard and mouse
If you are still running a Windows 10 PC, Biochrom 30Plus can also be operated on it, in both 32-bit and 64-bit mode. (However, this is no longer recommended due to Microsoft's discontinuation of Windows 10.)
Please note that due to the constantly evolving PC market, this data is subject to change at any time. Please use the contact options provided here to enquire with us and stay up to date.
Whether you need training, service or advice, our team is here to help. Laborservice Onken offers a wide range of services, including service contracts, preventive maintenance, repairs, and IQ/OQ validation and installation. In our own laboratory, we are happy to develop individual methods for your analysis process.
Here you will find an overview of our numerous services.
Sales
As the exclusive commercial partner of the company Biochrom Ltd.
We sell organic chromium amino acid analyzers, the accessories, the consumables and spare parts in the Switzerland, Germany, Austria, the Benelux countries, Denmark, Sweden and in some Eastern European countries.
A well thought-out logistics system and a fully stocked warehouse in Germany guarantee a fast delivery of all consumables, spare parts and accessories.
Calibration and control standards
We offer a number of different standard solutions for amino acid analysis, which can be used immediately after a simple, specified dilution.
For older Eppendorf-Biotronik amino acid analyzers LC 3000 we also stock necessary consumables, spare parts and accessories, which we sell to all users worldwide.
Applications
We offer a free support in issues concerning the application and development of methods in our own laboratory or on-site.
Consultations on site, by phone, by E-Mail or fax by experienced employees for our customers free of charge.
Training
We offer our clients an up to twice a year a 2-day amino acids user seminar on training in operation and maintenance of organic chromium amino acid analyzers.
The seminars are divided into a theoretical and a practical part.
They take place in small groups of up to 8 participants at suitable seminar locations.
Current dates are published here also our website and can be sent to if necessary. The delivery of this information requires a Declaration of consent.
Service and maintenance
Our highly trained and certified service team guarantees a fast, effective, and affordable service locally and in our home.
Our offer includes also the implementation of preventive maintenance according to a set of service specifications.
We also offer individual maintenance and service contracts.
Thanks to comprehensive, technical supplies, our response times are far less than 72 hours.
Our team is always available and the first point of contact for technical and applicative problems.
Click here to download of a detailed listing of our maintenance and service contracts.
Quality management
Our company is certified according to the latest ISO 9001:2015 standards.
Our employees are trained and certified by the manufacturer to carry out installation and operation qualification.
For more detailed information about the installation and operation qualification (IQOQ) click here
Simply ask your questions using the contact form

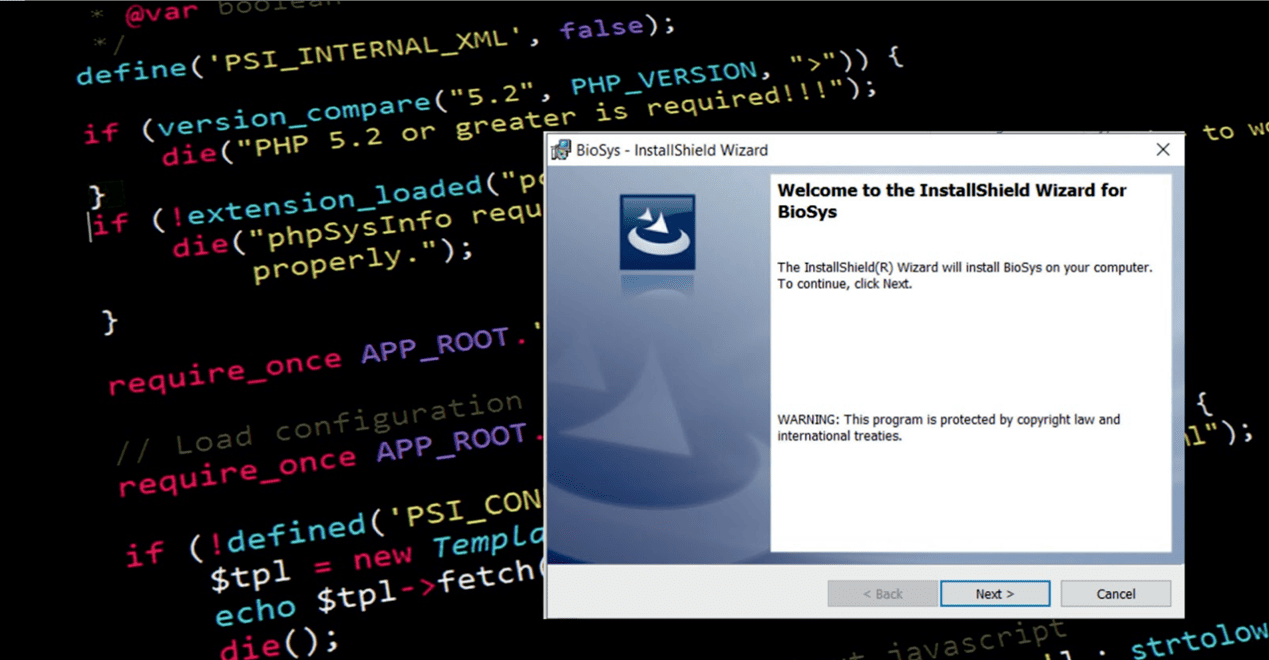

BioSys control software
The Biochrom 30Plus comes with the tried-and-tested BioSys control software. This software allows you to manually control all functions of the Biochrom 30Plus and older Biochrom models. BioSys displays all parameters, such as temperatures, pressures and switching states, and detects errors in the system. Depending on their severity, error messages trigger appropriate responses, ranging from warning messages to termination of the analysis.
A programme mode allows sample sequences to be processed automatically using different methods, enabling 24/7 routine operation without the need for extensive intervention. Reagent management ensures that warnings are issued before buffers and reagents run out. In edit mode, an unlimited number of analysis programmes can be programmed, enabling constant access to a wide variety of analysis methods. The software is easy to install and set up. BioSys is available in versions for Windows 7 and Windows 10 operating systems with 32 and 64 bits.
CDS software from renowned manufacturers available
Together with the Biochrom 30Plus, we offer popular and powerful data acquisition and evaluation software for chromatography from renowned manufacturers. Analogue signals from the Biochrom 30Plus are converted into digital signals by means of an A/D converter and fed into the software.Some highlights that each of our CDS solutions offers:True multitasking,Evaluation during ongoing analysis thanks to additional offline mode,Simplified method development with graphical interface,method and sequencer creation using wizards,multi-level calibration for external and internal quantification,linear, quadratic, cubic and point-to-point calibration functions,user-definable report formats,various data import and export options,AIA standard file format,DDE dynamic data exchange,digital signature possible,intuitive report generator enables the creation of your own detailed reports,system suitability functions integrated or optional,the respective software complies with FDA guidelines 21 CFR Part 11 for electronic signatures, audit trails,user and data management,and validation.Affordable alternative CDS - Clarity from DataApex
Cost-effective data acquisition and analysis software that has everything chromatography software needs and can hold its own against the established market leaders. Analogue signals from the Biochrom 30Plus are converted into digital signals by an A/D converter and fed into the software. A brochure in PDF format can be found here.
